Consumer, Commercial Turf Equipment, Golf Carts & Utility Vehicles

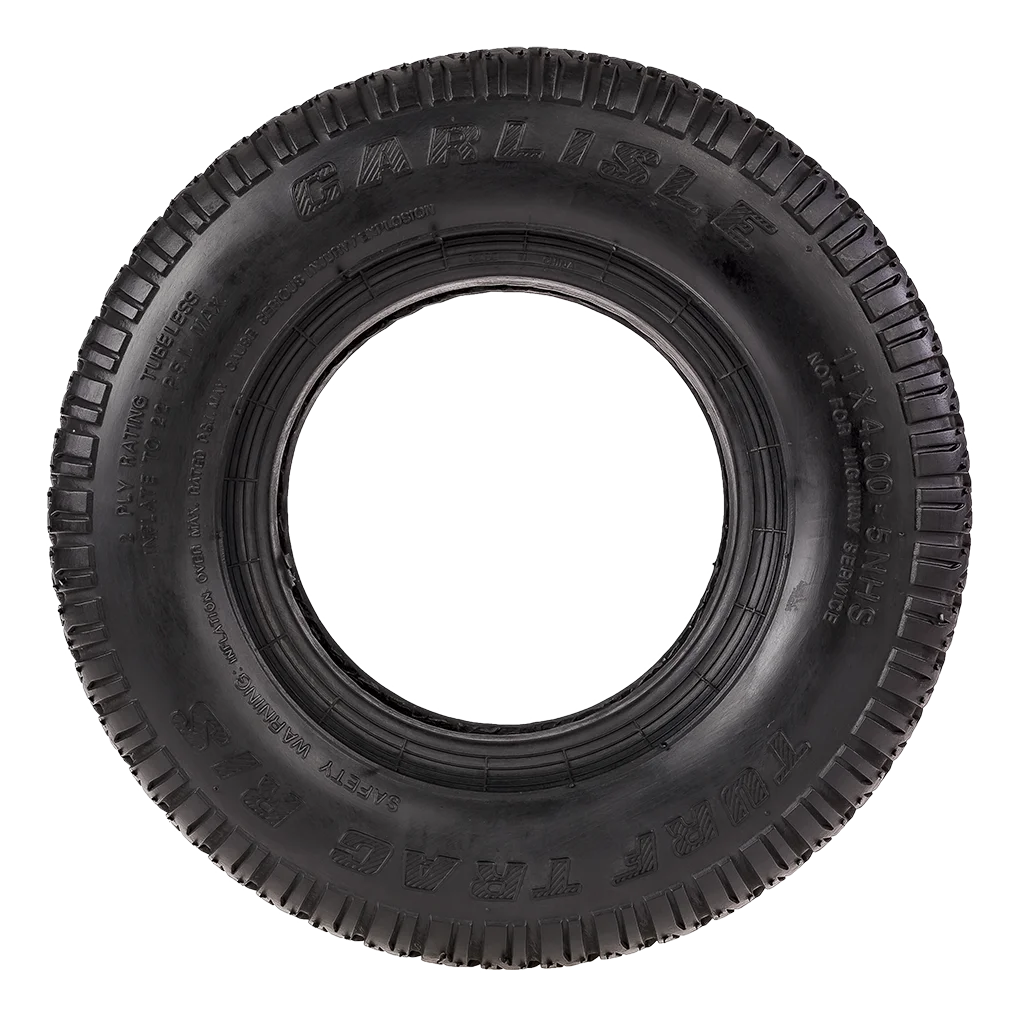

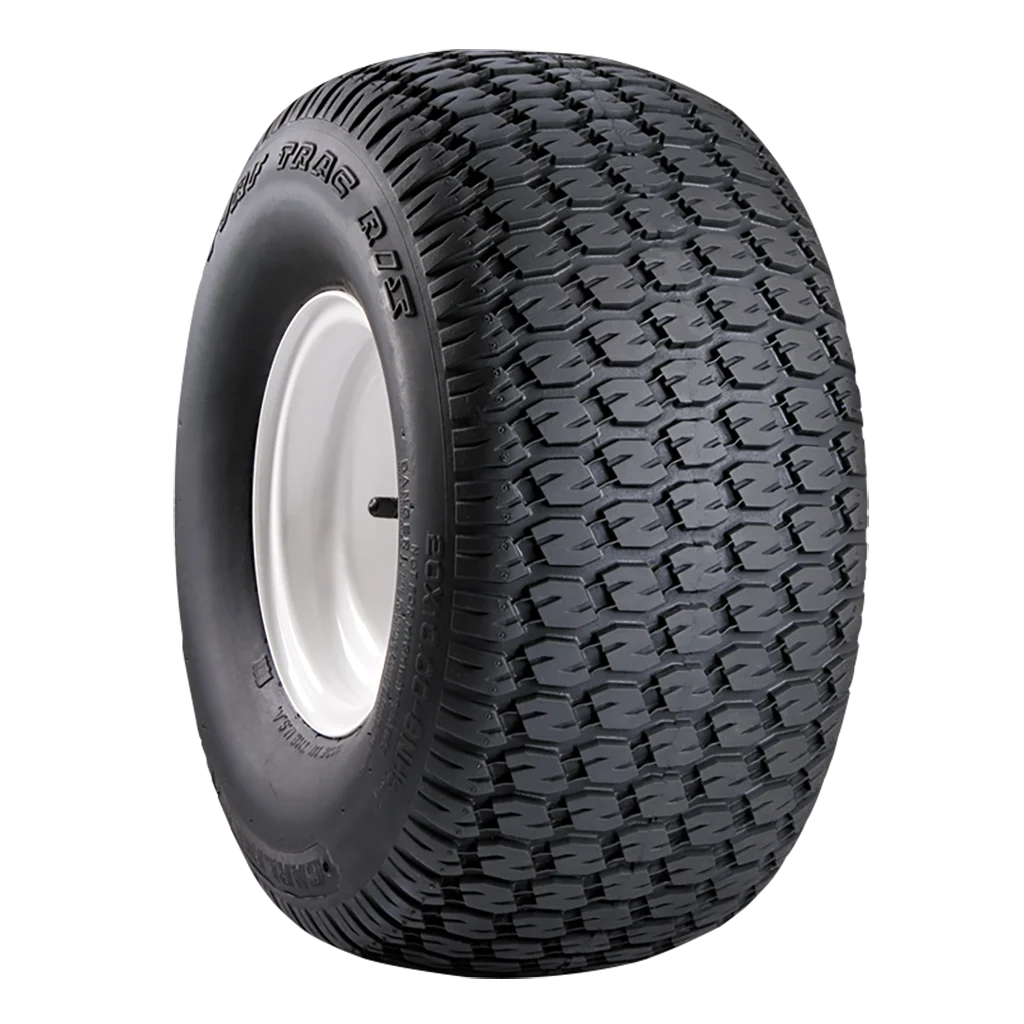

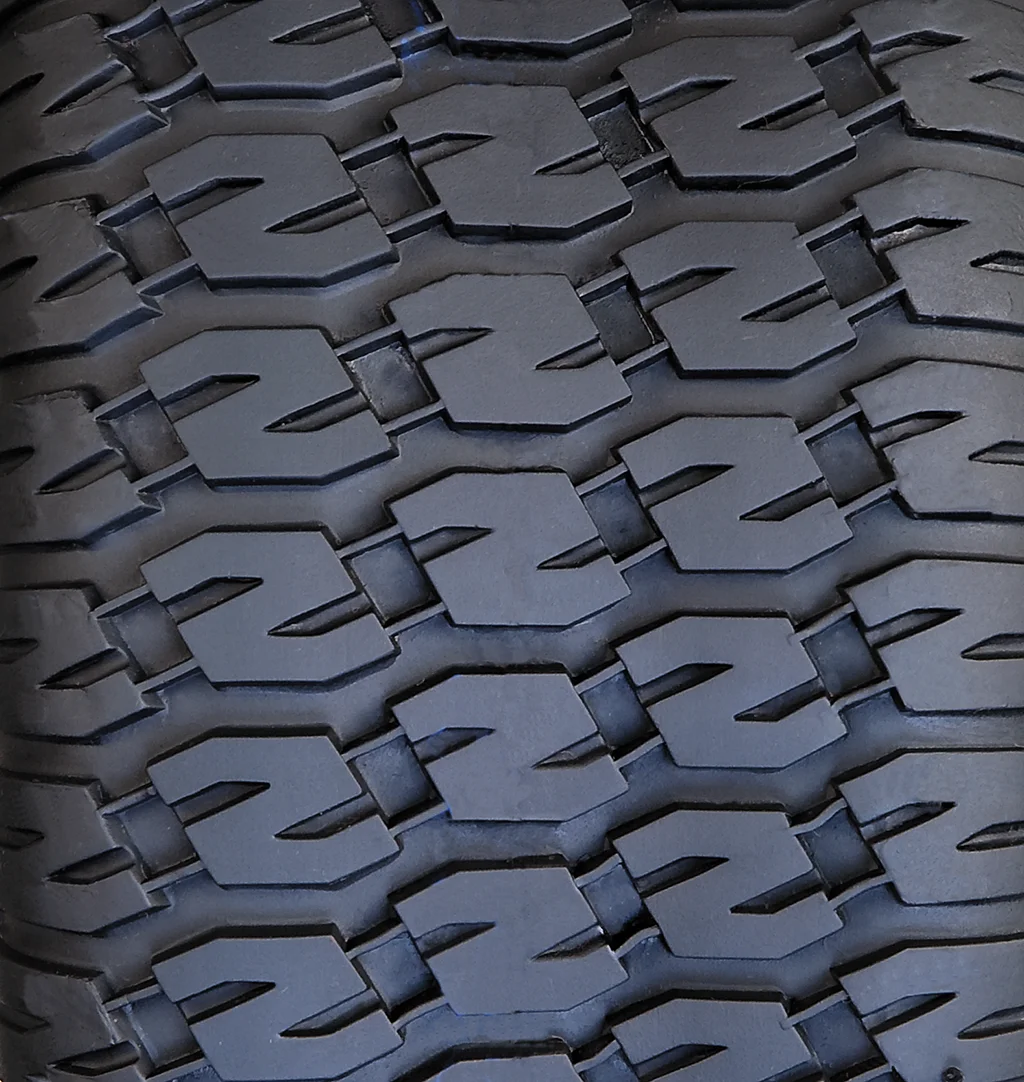

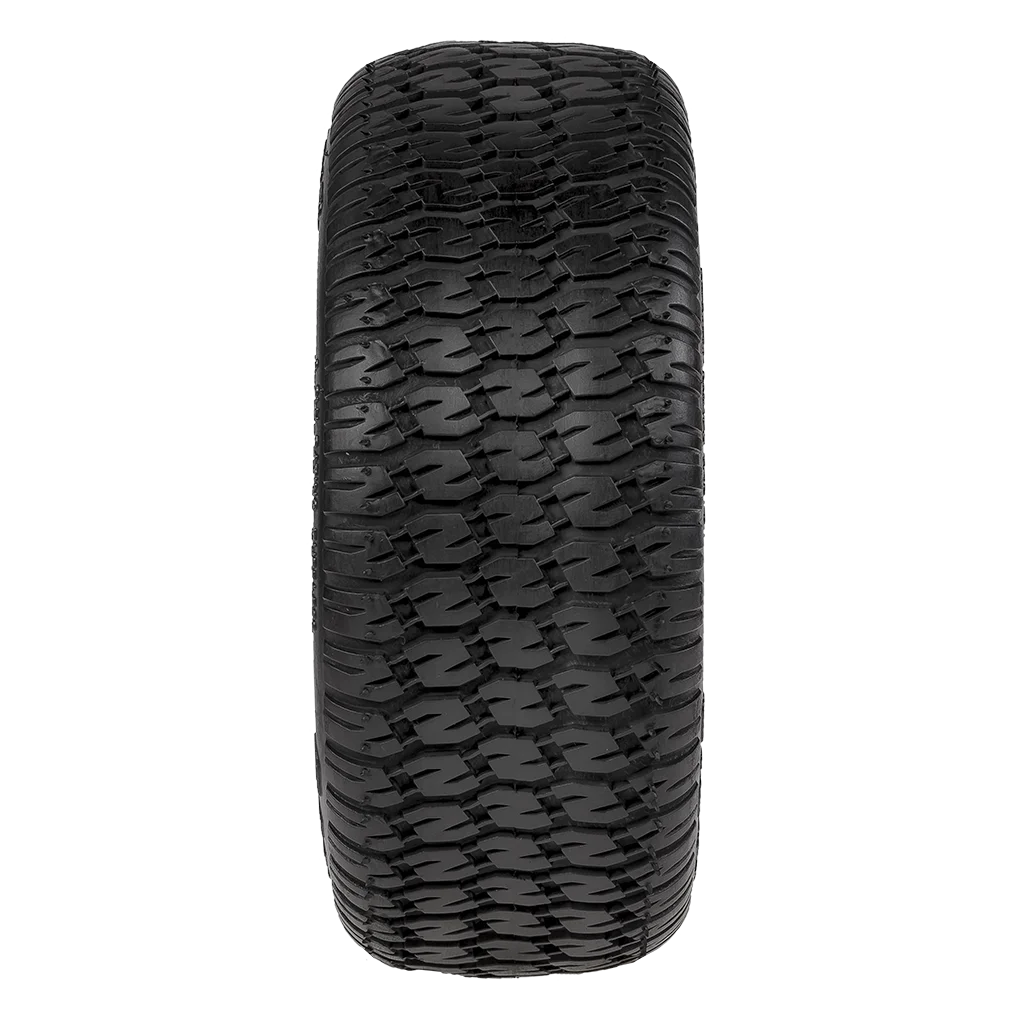

Carlisle’s Turf Trac R/S offers all-around performance with a balanced profile and ample tread depth. Applications range from residential zero turn mowers to utility vehicles. The var The variety of sizes available corresponds to the many possible uses.
| Item No | Size | PLY | Diam. (mm) | Width (mm) | Weight (kg) | Max Load (kg) | Speed (km/h) | Pressure (bar) | EAN | ECE | COO |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5E53331 | 11x4.00-5 NHS (100/70-5 IMP) | 2 | 270 | 101 | 1 | 95 | 20 | 1.5 | 5999110827988 | Yes | CN |
| 5753191 | 15x6.00-6 NHS (150/70-6 IMP) | 4 | 366 | 160 | 3 | 257 | 20 | 2.1 | 5999110802152 | Yes | CN |
| 6L02651 | 16x6.50-8 NHS (170/60-8 IMP) | 4 | 406 | 170 | 5 | 280 | 20 | 1.9 | 5999110802169 | Yes | CN |
| 5753311 | 18x8.50-8 NHS (220/60-8 IMP) | 4 | 450 | 206 | 4 | 375 | 20 | 1.5 | 5999110802176 | Yes | CN |
| 5ED362 | 245/50-10 IMP | 4 | 497 | 238 | 6 | 530 | 20 | 1.5 | 5999110828022 | Yes | US |
| 6L08311 | 20x10.00-10 IMP (250/50-10) | 4 | 498 | 241 | 6 | 530 | 20 | 1,5 | 5999110838748 | Yes | CN |
| 5E53411 | 250/60-8 IMP | 4 | 500 | 246 | 5 | 545 | 20 | 1.5 | 5999110828176 | Yes | CN |
| 5753151 | 20x12.00-10 NHS (305/40-10 ) | 4 | 503 | 257 | 7 | 600 | 20 | 1.4 | 5999110800103 | Yes | CN |
| 5753N11 | 22x9.50-10 NHS (240/60-10 IMP) | 4 | 551 | 241 | 7 | 437 | 20 | 0.9 | 5999110802206 | Yes | CN |
| 5E53B71 | 265/70-8 IMP | 4 | 574 | 267 | 9 | 630 | 20 | 1.5 | 5999110827995 | Yes | CN |
| 5E53671 | 260/50-12 IMP | 4 | 574 | 259 | 7 | 600 | 20 | 1.4 | 5999110828008 | Yes | CN |
| 5E5390 | 290/50-12 IMP | 6 | 587 | 285 | 10 | 1030 | 20 | 2.2 | 5999110828039 | Yes | US |
| 5E53P2 | 24x9.50-10 NHS (240/75-10 ) | 4 | 617 | 249 | 8 | 650 | 20 | 1.5 | 5999110800288 | Yes | US |
| 5753A61 | 24x12.00-10 NHS (305/60-10 ) | 4 | 619 | 302 | 10 | 775 | 20 | 1.4 | 5999110834542 | Yes | CN |
| 5ED363 | 305/55-12 | 10 | 643 | 315 | 11 | 1500 | 20 | 3.6 | 5999110824321 | Yes | US |
| 50D3T7 | 25x12.00B9 NHS (300/65B9 IMP) | 4 | 653 | 310 | 10 | 825 | 20 | 1.4 | 5999110802718 | Yes | US |
| N0D3T7 | 25x12.00B9 NHS (300/65B9 IMP) | 4 | 653 | 310 | 10 | 825 | 20 | 1.4 | 5999110802718 | Yes | US |
